[Homepage] - by: WeBBusterZ Engineering Software - Download Gasketed Plate Heat Exchanger Design

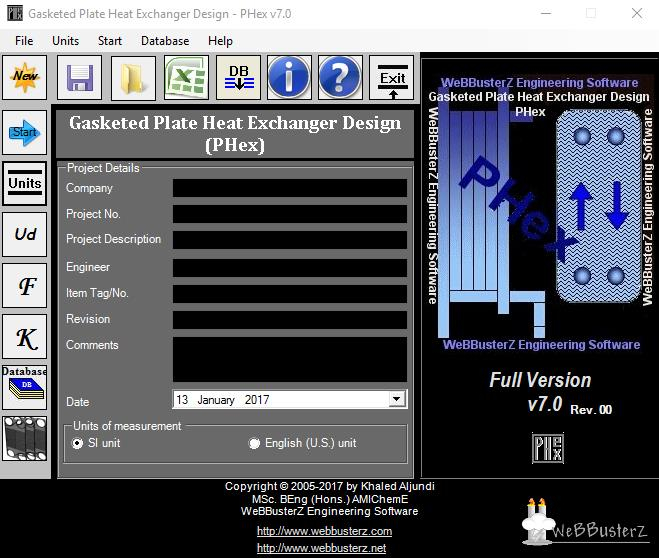

Click to enlarge


Description:
PHex is an easy to use tool which demonstrates the thermal calculations of Gasketed Plate Heat Exchangers, The plate dimensions and materials can be entered, this includes the size of plate heat exchanger and chevron angle.List of main features: 1. Support S.I Units and English (U.S) Units of measurement 2. Unit converter containing 23 measurements with 200-unit conversion. 3. Full version includes manufacturers plate database containing over 230 plates. 4. Import physical properties data to hot side & cold side from Microsoft Excel & from WeBBusterZ Physical properties database (included with full version) 5. Export Results to Engineering Data sheet, pdf or excel format6. Temperature and Flow rate estimation in the event of insufficient data. including the ability to estimate any 2 Unknown temperatures providing that the Heat load and flow rates are specified as input.7. Select from a list of 12 Nusselt number correlations8. Heat load required (clean or fouled) calculations. 9. Ability to specify a required heat load10. Total effective area & surface area calculation. 11. No. of plates calculations. 12. Overall Coefficient (clean / dirty) calculations. 13. Pressure drop Channel/Port/Total for Hot side and cold side Calculations. 14. Plate heat exchanger dimension calculations. 15. Velocity through ports, Mass velocity through channel/ports calculations. 16. Heat transfer coefficient calculations 17. Estimate the Physical properties of pure components for more than 1450 components; the database comes as separate software but easily integrated with the software. (included with full version purchase)18. Create your own database of Plates and Components. You can add your fluid physical properties and load the data to your project.19. Add your own Nusselt number correlations 20. Fouling factors (included with full version)21. Overall heat transfer coefficients 22. Material Thermal Conductivitiesread more at webbusterz...

HyperPublish The professional software for creating Websites / Web & CD catalogues; database CSV import, (sub)categories, and much more...   DVD to Divx Xvid Ripper Excellent Video DVD ripper to backup your DVDs / copy to DivX, XviD, AVI, VCD and more...   1site WebSite creator software, easy but also fast & handy for the long time productivity... for the beginner and for the busy tech...   FLV to Video Converter Pro Convert FLV Flash video files to common video / audio... creare sito web creare cd

Price $ 89.99 / Purchase Gasketed Plate Heat Exchanger Design Get it Now

DOWNLOAD: Gasketed Plate Heat Exchanger Design Free Download (File size: 9091 Kb) (Statistics)

Price $ 89.99 /


Purchase Gasketed Plate Heat Exchanger Design
Get it Now
(to see additional options, click Buy Now)
Type: Demo
File size: 9091 Kb
Date: 01/19/2017
Homepage
Install support: Install and Uninstall
OS: Win2000, WinXP, Win7 x32, Win7 x64, Windows 8, Windows 10, WinServer, WinOther, Windows2000, Windows2003, Windows Server 2012, Windows Tablet PC Edition 2005, Windows Media Center Edition 2005, WinVista, Windows Vista Starter, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Business, Windows Vista Enterprise, Windows Vista Ultimate, WinVista x64, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Business x64, Windows Vista Enterprise x64, Windows Vista Ultimate x64
System requirements: Windows PC compatible computer,64MB RAM,20MB free disk space
Language: English
Recent changes in this Major Update:
+ Added 12 Nusselt number correlations.+ Add your own Nusselt number correlation+ Added the ability to define Nusselt number + Added manufacturers plate database containing over 230 plates+ Added Units converter containing 23 measurements with 200-unit conversion+ bug fixes.
